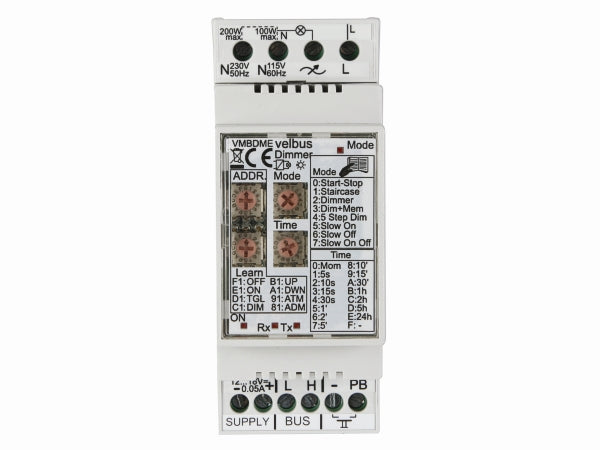

VELBUS - Lysdæmper til elektronisk / resistiv belastning

Egenskaber:

• Noiseless through CoolMOS„¢ FET
• Mains pollution (EMI) conform EN55015
• Built-in non-resettable fuse
• gradual switch on or off a. will prolong the lamp's life
• Manual control on the module
• Control through VELBUS
• Programmable without PC
• 16 possible time set-ups: momentary - 5s - 10s - 15s - 30s - 1min - 2 min - 5min - 10min - 15min - 30min - 1u - 2u - 5u - 1day - on/off
• Controllable by connecting several push buttons in parallel
• Easy learning process
• Storage space for 16 different push buttons
• Learned push buttons are saved in case of a power failure
• Report to control modules
• LED indicators for:
  • Operation modes
  • Power voltage
  • Data reception and forwarding through VELBUS
• Operation modes :
  • Moment control
  • Start/stop timer
  • Staircase lighting timer
  • Dimmer
  • Dimmer with memory function
  • Multi-position dimmer
  • Slow-on dimmer
  • Slow-off dimmer
  • Slow on-off dimmer
• Control possibilities:
  • Push buttons turning on the lamp to full intensity
  • Push buttons turning the lamp off
  • Push buttons turning on the lamp to full intensity or turning off the lamp
  • Push buttons activating the set operation mode
  • Push buttons increasing the lamp's light intensity
  • Push buttons decreasing the lamp's light intensity
  • Push buttons creating atmospheric lighting
  • Push buttons turning on the lamp on the desired intensity.

Tekniske detaljer:

• Forsyningsspænding: 12VDC...18VDC
• Strømforbrug: 40mA
• Required mains voltage: 100-125V/60Hz or 220-240V/50Hz
• Maks. belastning:
  • 200W @ 230V or 100W @ 115V
• Dimming from 0 to 100% in ca. 4 seconds
• 248 possible addresses
• Push button input debounce: 65ms
• Standard DIN-rail housing: 2 modules
• Størrelse: 90 x 36 x 58mm / 3.5 x 1.4 x 2.3"
• Vægt: 95g (0,21lbs)
