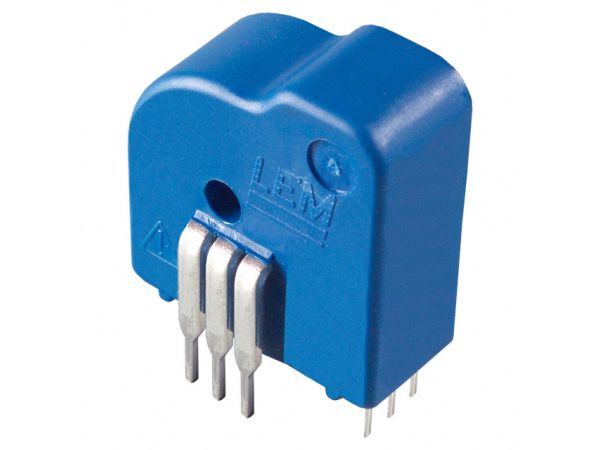

LTS6-NP Current transducer - 6A, -19,2A til 19,2A, 5VDC

The LTS 6-NP from LEM is a current transducer. It features instantaneous output, excellent accuracy, very good linearity, very low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high immunity to external interference and current overload capability. This current transducer is used for the electronic measurement of currents (DC, AC, pulsed, mixed) with galvanic separation between the primary circuit and the secondary circuit. It is mainly used in AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS) and power supplies for welding applications.

Egenskaber:

• Closed loop multirange current transducer using the hall effect technology
• Primary current measuring range is ±19.2A
• Supply voltage of 5V
• Unipolar voltage supply
• Secondary nominal signal of 0.625V
• Insulated plastic case recognized according to UL 94-V0
• Operating temperature range from -40°C to 85°C
• Compact design for PCB mounting

Tekniske detaljer:

• Sensor Output: Voltage
• Supply Voltage DC Min: 4.75V
• Supply Voltage DC Max: 5.25V
• Current Measuring Range DC: -
• Current Measuring Range AC: -19.2A to 19.2A
• Response Time: 400ns
• Accuracy %: 0.2%
