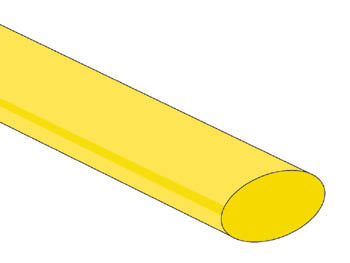

Krympeflex 2:1 - Ø12,7mm GUL (1,2m)

Heat-shrinkable tubing is universally applied for the insulation of connections or for the end-handling of electric wire, for the insulation of soldered points on resistors and capacitors, for the identification and encapsulation of electric wire, for the corrosion-proofing of metallic rods or tubes and for the protection of antennas. Heat-shrinkable tubes are used for the corrosion-proof and waterproof connection of fibre optic cable. Halogen-free, flexible, flame-retardant heat-shrinkable tubing. Free of Pb,Cd, Hg,Cr+6, PBB and PBDE. Can be used in any enclosed area where a flame-retardant, halogen-free environment is required, such as the uderground, skyscraper, mass transit vehicles and ships. UL recognized at 600V. F mark.

Tekniske detaljer:

• Farve: yellow
• Længde: 1,2m
• Bore as supplied min.: 12.7mm
• Shrink temperature: 90°C
• Temperature range : 125°C
• Radial shrinking ratio: >50%
• Longitudinal change: <5%
• Tensile strength: >10.4 MPa
• Ultimate elongation: >200 %
• Aging in circulating-air oven: 158.0±1.0°C, 168hrs
  • Tensile strength: >7.3MPa
• After aging:
  • Ultimate elongation: >100%
• Volume resistivity: >1014 Ohm.cm
• Dielektrisk styrke: >15 KV/mm
• Flammability: VW-1
• Concentricity: >65%

Også kendt som: Krympemuffe, Heat-shrinkable Tubing.
