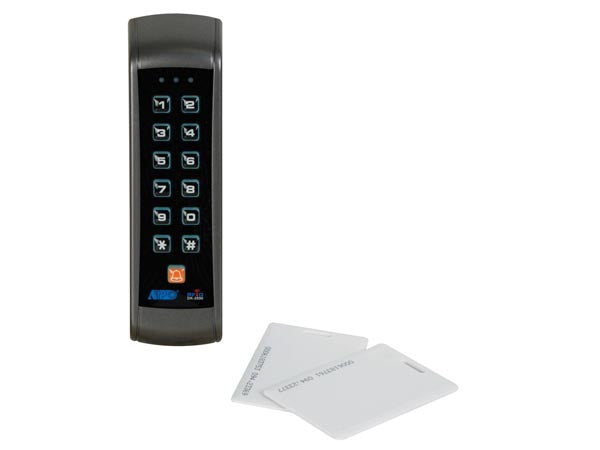

Adgangskontrolpanel m. RFID og 2 relæ udgange (IP55)

The HAA2890 is a weatherproof, self-contained, mullion mount compact keypad, combining the functions of digital keypad and proximity EM card reader in one unit.

Egenskaber:

• Durable epoxy coated back-lit key board with doorbell button
• Vertical mount weatherproof plastic housing
• Operated with PIN codes & EM cards
• Self-contained, stand-alone operation
• Built-in data I/O port expandable for split-decoded operation
• Relay output contacts for door strike and doorbell
• Dual illumination level, user friendly for low-lit environment
• Programmable user codes, visitor codes and master code
• Stand-alone electrical access control
• Compatible with Fail-secure or Fail-safe electrical lock
• Programmable intelligent egress button: controls possible with delay, warning and button contact ways of momentary or holding contact
• Common user PIN, group user PINs & private user PINs for working with the EM card at various levels of security
• Extremely long programmable timer for output relay: 1 second up to over 24 hours
• Valgfrit tilbehør (medfølger ikke):
  • Access card: HAA2866/TAG (se tilbehør)
  • Access card keyhanger: HAA2866/TAG2 (se tilbehør)

Tekniske detaljer:

• Housing: ABS
• Operating voltage: 11 - 15Vdc
• Strøm: 60 - 90mA
• Output relay 1: NC + NO dry contacts 2 A / 24 Vdc maks.
• Output relay 2: NO dry contact 2 A / 24 Vdc maks.
• Tamper switch: NC dry contact 50 mA / 12 Vdc
• Operationel temperatur: -20°C ~ +70°C
• Humidity: 5~95% RH, non condensing
• IP rating : IP55
• Vægt: 160 g
• Dimensions (HxWxD): 168.5 x 46.5 x 24mm
