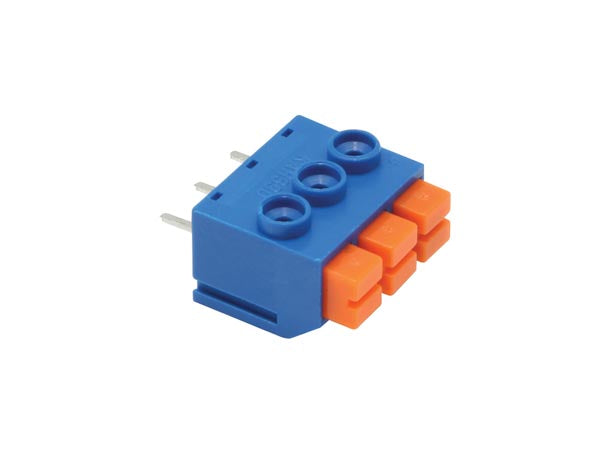

Skrueløs terminal - 3pol, 5mm benafstand (3 ben), Blå

Egenskaber:

• These screwless terminals are suitable for both solid and flexible conductors
• A spring made of stainless strip steel guarantees permanent and safe contact
• Operation by pushing the lever with a screwdriver (this lever is fully integrated in the body)
• Equipped with a cover for easy manual adjustment
• Blocks are stackable

Tekniske detaljer:

• Contact material: brass
• Contact spring: Stainless steel strip
• Solder tail: Tin plated
• Insulator body: PBT - 30% glass filled
• Current rating: 8 A
• Dielectric Strenght: 2500 V
• AWG: 22-16
• Insulation Withstands Voltage: AC1500V/Min.
• Operationel temperatur: -30°C to 120°C
• Pitch: 5mm
• Screwless push-button type
• Pitch: 5mm
• Insulated body lever, cover: glass-filled polyester (UL94VO)
• AWG: 20 - 18 (0.6 to 1,5mm²)
• Kontakt: brass (CuZn)
• Surface of solder pins: tin-plated
• Current rating: maks. 15A, 300Vac / way
• Insulation withstand voltage: 2000Vac min.
• Insulation resistance: 500Mohm (at 5000Vdc)
• Operationel temperatur: -33°C til +120°C
• Soldering temperature: +250°C, 5 seconds maks.
• Farve: Grønwith orange
