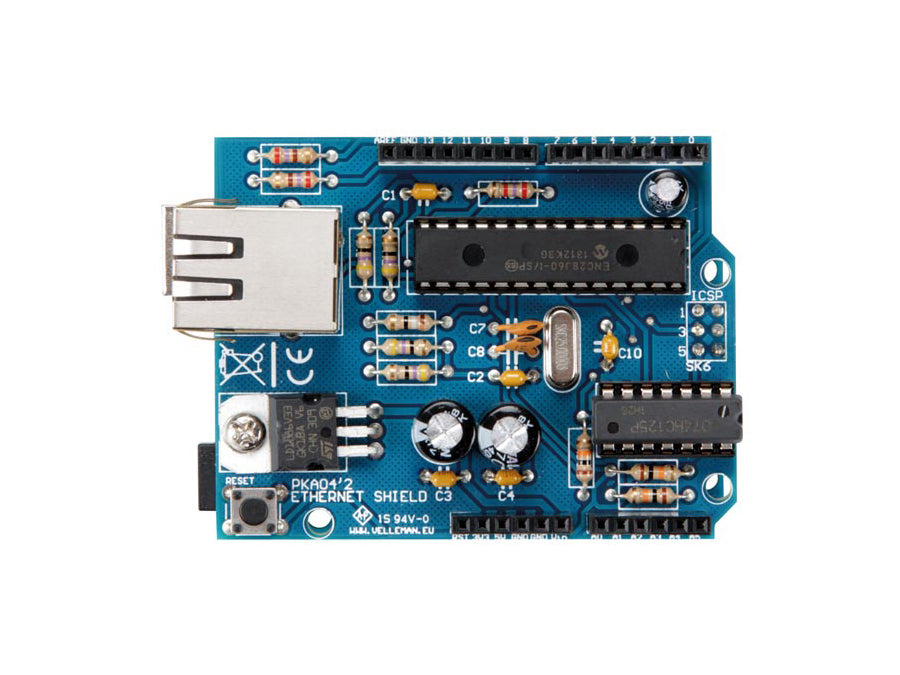

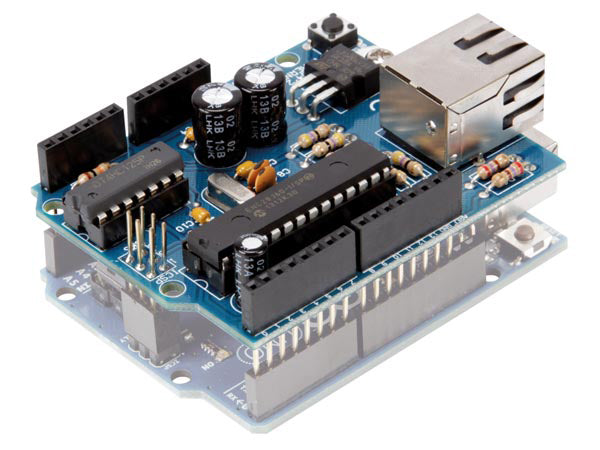

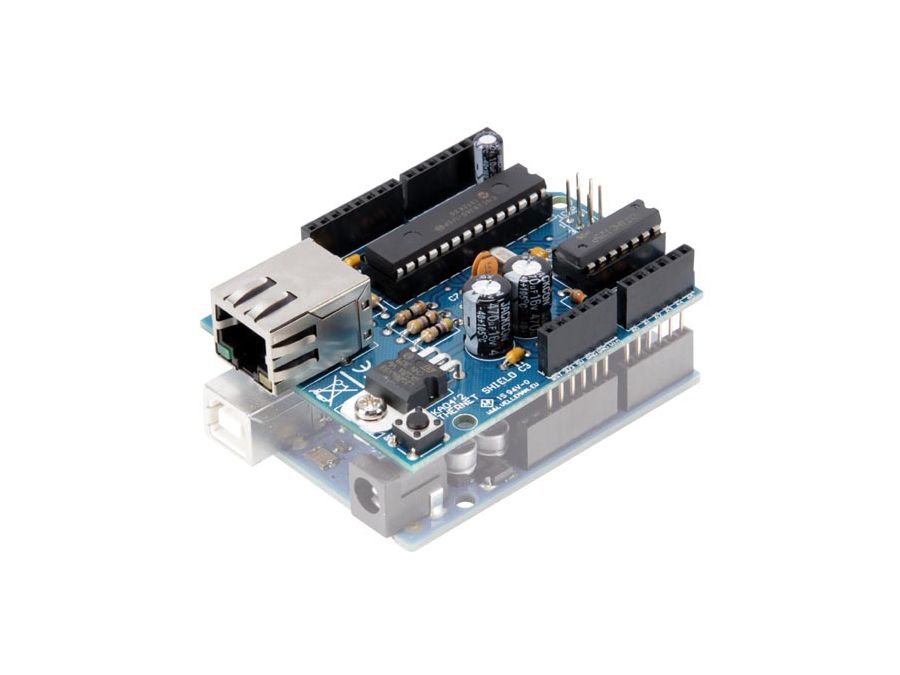

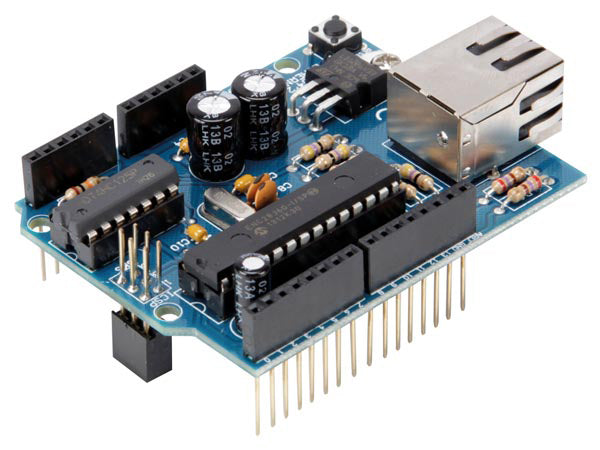

WPSH04 Ethernet shield til Arduino (færdigsamlet)

Konfigurer din Arduino Uno som en

Egenskaber:

• Based on a Microchip ENC28J60 chip
• Downloadable sample sketches and library
• Stackable design: the shield can be stacked with other shields
• Large user community
• Requires 1 Arduino UNO™ (not included)

Tekniske detaljer:

• Data rates up to 10 Mbps
• Integrated MAC controller
• 8 kB Transmit / Receive Packet Dual Port Buffer
• The MAC controller supports both Unicast, Multicast and Broadcast packets, has a programmable (up to 64-byte) pattern matching feature within a packet at user defined offset and programmable wake-up on multiple packet formats (Magic Packet, Unicast, Multicast, Broadcast, specific packet match or any packet)
• Uses pin 10 and 2 on an Arduino UNO™ board. It also uses the ICSP connector as a serial connection to the shield to free up I/O pins
• Størrelse: 80 x 55 x 30mm / 3.15 x 2.16 x 1.18"
