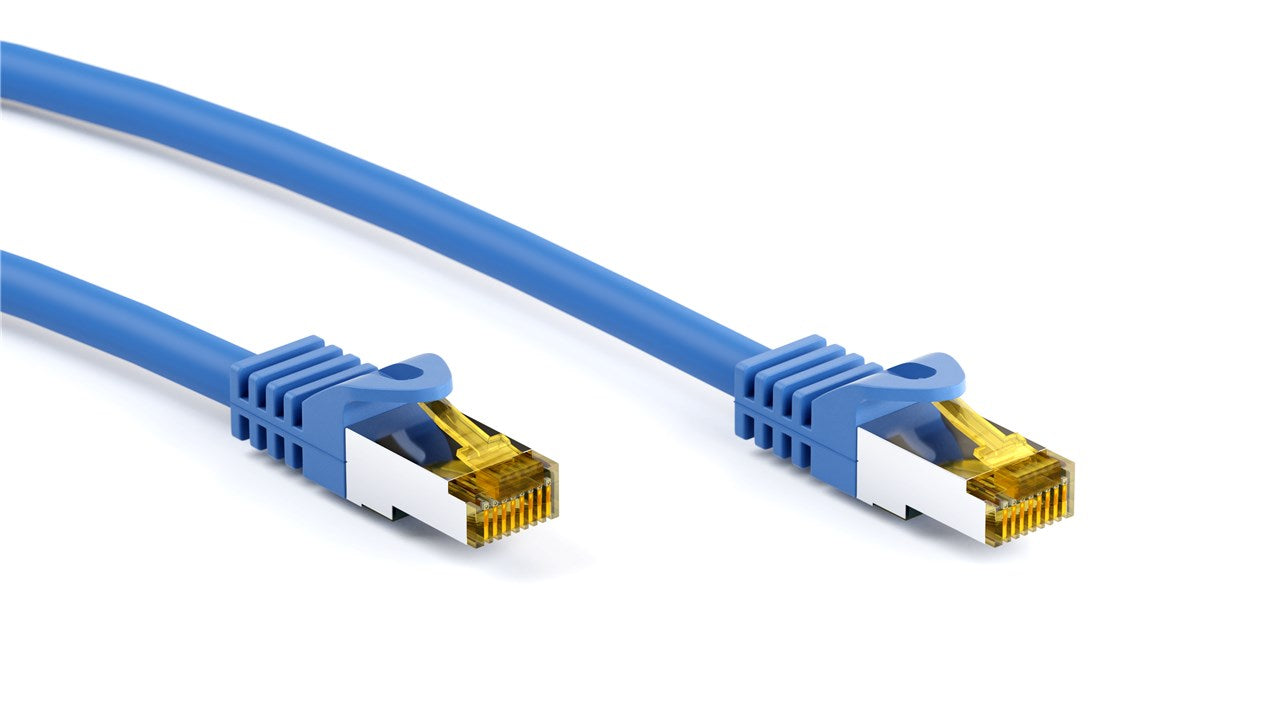

S/FTP netværkskabel - CAT7, PIMF, Halogenfri, CU, Blå (1m)

Double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components.

Features:

• High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X
• S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
• High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection.
• Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
• Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
• CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s.

Specifications:

• Connections:
  • Contacting: EIA/TIA-568 B
  • Connection, contact material: gold-plated 50µm
  • Connection, shielding: yes
  • Latch protection: both sides
  • Connection, type: RJ45 male (8P8C)
  • Connection 2, type: RJ45 male (8P8C)
  • Kink protection: both sides
• Cable:
  • Cable type: Cat 7 raw cable
  • Cable length: 1 m
  • Inner conductor size: AWG 26/7 (stranded)
  • Inner conductor material: CU (copper)
  • Number of shieldings: 2 x
    • Type 1, shielding: foil (alu) PiMF
    • Type 2, shielding: braid (alu) overall shield
  • Shielding class: S/FTP (PiMF)
  • Bending radius: > 48 mm
  • Cable sheath diameter (approx.): Ø6.2 mm
  • Material cable sheath: LSZH
  • LSZH compliant: Yes
• Signal transmission:
  • Max. bandwidth: 500 MHz
• General:
  • Color: blue
  • Markings: CE, WEEE
  • Special feature: Length indication on connector
  • Operating temperature: -20...65°C
