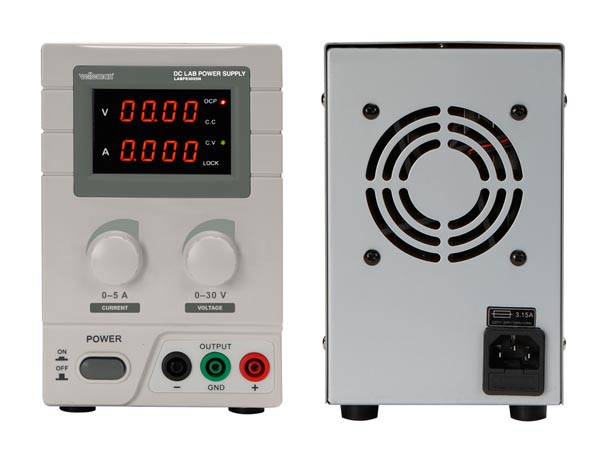

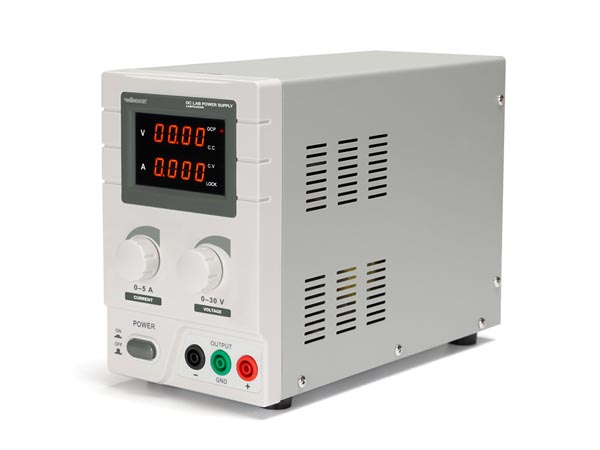

Laboratorie strømforsyning - 0-30V / 0-5A, dobbelt LED disp.

Egenskaber:

• Dual LED display for voltage and current
• Coarse and fine adjustments of voltage and current
• Voltage or current-limiting
• Output connectors: insulated safety plugs
• Low noise temperature controlled fan
• 4 digit display
• Setting lock function
• Constant voltage / constant current
• 10 mV / 1 mA setting resolution
• Protection modes:
  • Fuse 3.15 A / 250 V
  • Over-current protection
  • Over-temperature protection (95 °C)
• Fuse-protected

Tekniske detaljer:

• Indgangsspænding: 220 VAC (± 10 %) 50/60 Hz
• Output:
  • Voltage: 0-30 VDC
  • Current: 0-5 A
  • Effekt: 150 W max.
  • Power factor (cos phi): 0.82
• Ripple voltage: =/< 1.0 mV (rms)
• Ripple current: 3 mA (rms)
• Operating temperature: 0 to +40°C, < 90% relative humidity
• Maks. hours continuous at full load: 8 hours
• Størrelse: 117 x 190 x 270mm
• Vægt: 4.8 kg
• Farve: grey
