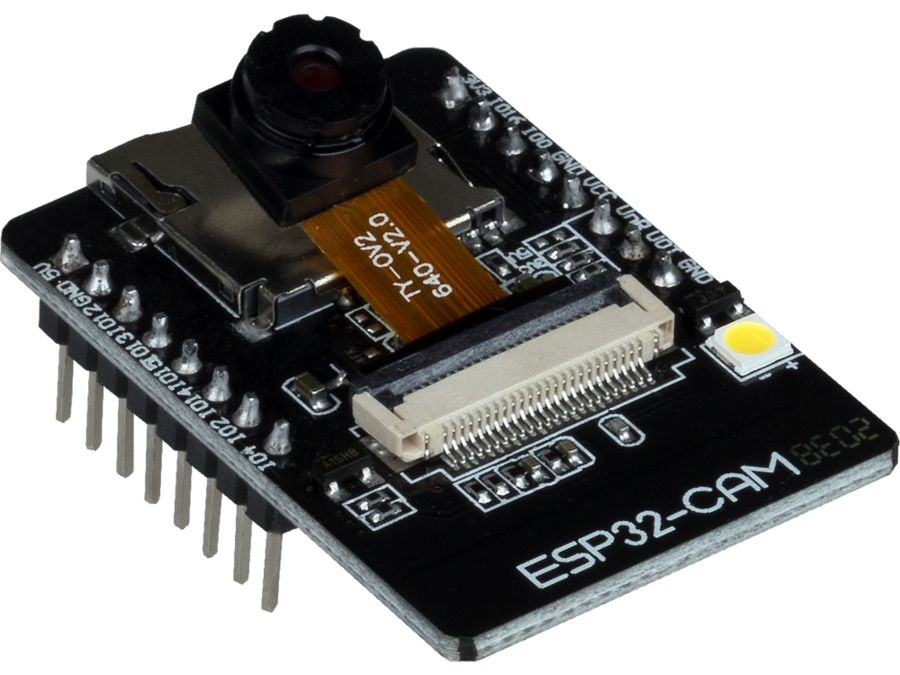

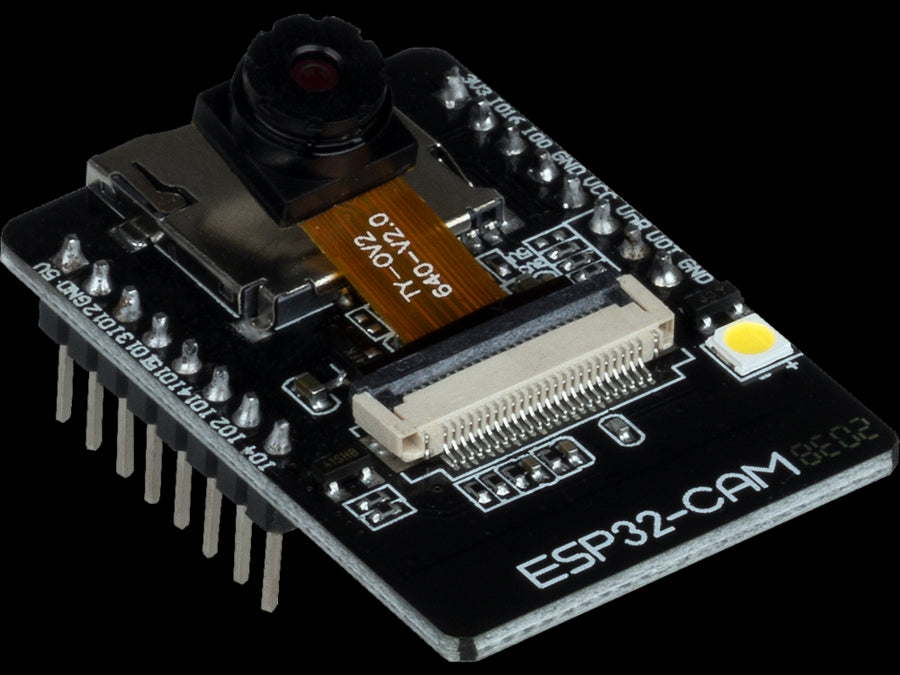

ESP32 kamera modul - 2MP, flash, SD-kort, BT / Wi-Fi

The ESP32-Cam is a compact camera module with low power consumption, multiple interfaces ( SPI / I²C / UART / PWM ) and is therefore suitable for many IoT applications and home projects ( e.g. video surveillance, QR identification and much more ). It is based on the popular ESP32, has a 2 megapixel camera with integrated LED flash and an SD card slot ( up to 4GB memory ), allowing images to be saved directly to the memory card.

Specifications:

• Camera: 2MP OV2640
• Photo formats: JPEG, BMP, Grayscale
• Processor: Dual Core-ESP32 160 MHz
• Besonderheiten: Bright Flash-LED, integrated antenna
• Interfaces: UART, SPI, I2C, PWM, Wi-Fi, BT-wireless connection
• SD-Card slot: Up to 4 GB
• SPI Flash: 32 Mbit
• RAM: 52KB SRAM + 4MB PSRAM
• Supply voltage: 5 V
• Operating temperature: -20°C ~ 85°C
• UART standard Baudrate: 115200 bps
• Power consumption: 6mA in deep sleep; 180 mA without flash; 310 mA with flash at max. brightness
• Security: WPA, WPA2, WPA2-Enterprise, WPS
• Dimensions: 27 x 40,5 x 4,5 mm
