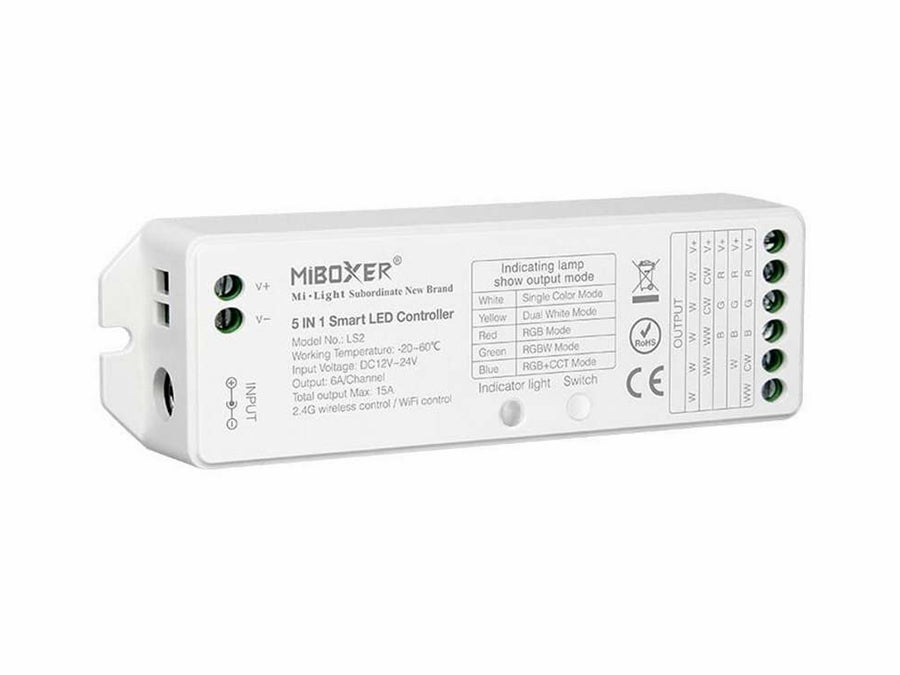

MiBOXER 5-i-1 Mono/RGB/RGBW, CCT LED styring - 12/24V, 15A

MiBOXER 5-i-1 LED styring er en controller, der giver dig mulighed for at styre MONO, RGB, RGBW, CCT og RGB+CCT LED-strips. MiBOXER-modtageren kombineret med MiBOXER-fjernbetjeningen er produkter med en interessant og original betjeningsmetode. Modtageren er forbundet til fjernbetjeningen trådløst via en frekvens på 2,4GHz. Modtageren monteres nemt mellem strømforsyningen og din(e) LED strip(s).

Tilslutningsdiagram for LED-strømforsyning, controller og MONO LED-strip:

Tilslutningsdiagram for LED-strømforsyning, controller og CCT LED-strip:

Tilslutningsdiagram for LED-strømforsyning, controller og RGB LED-strip:

Tilslutningsdiagram for LED-strømforsyning, controller og RGBW LED-strip:

Tilslutningsdiagram for LED-strømforsyning, controller og RGB+CCT LED-strip:

Modtageren tillader kontrol ved hjælp af applikationer og stemmeassistenter. For at gøre dette skal du parre den med en Wi-Fi-gateway (sælges separat). Ved hjælp af applikationen kan du justere belysningen til din dags rytme. Lavere lysstyrke om natten eller tænd for belysningen i rummet om morgenen – mange muligheder fra én applikation.

Takket være strømmen på 15A kan en længere del af LED-strimlen forbindes til controlleren.

Tekniske detaljer:

• Mål 128x38x23mm
• Spænding: DC 12V-24V
• Arbejdsintensitet: 6A pr. kanal
• Maksimal belastning: 15A
• Trådløs frekvens: 2,4 GHz
• Trådløs modtagerækkevidde: Ca. 30m
• Wi-Fi-kontrol: med Wi-Fi-gateway
• Udgangsforbindelse: fælles anode
• Automatgear: ja
• Signalsynkronisering: ja

he MiBOXER 5-in-1 radio receiver is a controller that allows you to control MONO, RGB, RGBW, CCT and RGB+CCT LED strips. The MiBOXER receiver combined with the MiBOXER remote control are products with an interesting and original method of operation. The receiver is connected to the remote control using radio waves with a frequency of 2.4GHz. The receiver can be installed at any stage of LED strip assembly because it is mounted between the power supply and the strip.

Connection diagram of the LED power supply, controller and MONO LED strip:

Connection diagram of the LED power supply, controller and CCT LED strip:

Connection diagram of the LED power supply, controller and RGB LED strip:

Connection diagram of the LED power supply, controller and RGBW LED strip:

Connection diagram of the LED power supply, controller and RGB+CCT LED strip:

The receiver allows control using applications and voice assistants. To do this, you need to pair it with a Wi-Fi gateway (sold separately). Using the application, you can adjust the lighting to the rhythm of your day. Lower brightness of light at night or turning on the lighting in the room in the morning – many possibilities from one application.

Thanks to the current of 15A, a longer section of the LED strip can be connected to the controller.

Specifications:

• Dimensions 128x38x23mm
• Tension: DC 12V-24V
• Work intensity: 6A per channel
• Maximum load: 15A
• Wireless Frequency: 2.4 GHz
• Wireless reception range: Approx. 30m
• Wi-Fi Control: with Wi-Fi gateway
• Output connection: common anode
• Auto transmission: yes
• Signal synchronization: yes
