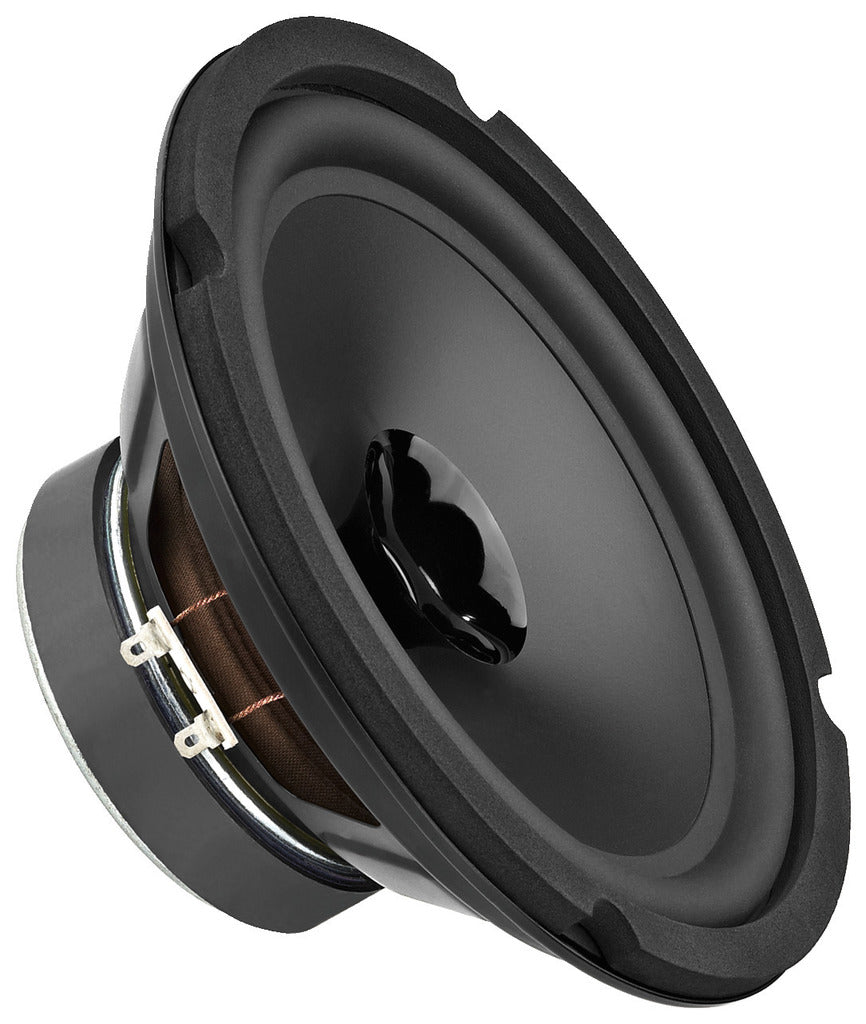

8" Hi-fi full range speaker, 50W, 8 ohm (Ø203mm)

Hi-fi full range speaker, 50 W, 8 ? Excellent sound quality Very wide frequency range, slightly rising towards the high frequencies Low-resonance and weatherproof polypropylene cone with rubber surround Very good bass reproduction Ideally suited for application in closed cabinets.

Klang+Ton 02/2013:
“Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers.”

Features:

• Excellent sound quality
• Very wide frequency range, slightly rising towards the high frequencies
• Low-resonance and weatherproof polypropylene cone with rubber surround
• Very good bass reproduction
• Ideally suited for application in closed cabinets

Specifications:

• Type of speaker: 8", full range
• Impedance (Z): 8 Ohm
• Frequency range: f3-18,000 Hz
• Resonant frequency (fs): 36 Hz
• Power rating (RMS): 50 W
• Peak music power output (MAX): 100 W
• SPL: 89 dB/W/m
• Suspension compl. (Cms): 0.95 mm/N
• Moving mass (Mms): 19.7 g
• Mech. Q factor (Qms): 4.18
• Electr. Q factor (Qes): 0.69
• Total Q factor (Qts): 0.59
• Equivalent volume (Vas): 60.5 l
• DC resistance (Re): 7.6 Ohm
• Force factor (BxL): 6.79 Tm
• Voice coil induct. (Le): 0.35 mH
• Voice coil diameter: Ø 25 mm
• Voice coil former: Kapton
• Linear excursion (XMAX): ± 2 mm
• Eff. cone area (Sd): 213 cm²
• Magnet weight: 564 g
• Magnet diameter: Ø 96 mm
• Mounting cutout: Ø 180 mm
• Mounting depth: 78.5 mm
• Dimensions: Ø203 mm x 89 mm
• Outside diameter: Ø 203 mm
• Depth: 99 mm
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Weight: 1.32 kg
